Vehicle Service Type - Car, Sport Utility Vehicle, Truck
Material - Alloy Steel
Load Capacity - 5 tons
Brand - TYAYT
Color - Orange
Minimum Height - 6 Inches
[POWERFUL AND PORTABLE CAR JACK]
TYAYT electric car jack is hydraulic driven, it can lift vehicles within 5 Tons in less than 2 mins to its Max (lifting range 6-17.7 inches). The powerful hydraulic jack nearly matches all the autos, sedan, SUV, MPV, pickup and truck, more competitive than other car jacks. NOTES: Start car engine before operation. NEVER USE THE JACK ON SLOP GROUND OR OVER 5 TONS VEHICLES.
[HIGHER STABILITY AND SAFETY]
Heavy duty steel pressure rod, features stronger bearing capacity. Permanently lubricated DC motor can provide enough power. The electric jack will automatically stop working when it reaches the height limitation or overload. The self-locking device can prevent the jack from falling and keeps a steady height even with no power, ensure the safety of the car and people
[PORTABLE IMPACT WRENCH]
This electric car jack kit contains a portable ergonomic-designed electric impact wrench and two sleeves with two sizes, matching more vehicles in the market. Powerful motor and precisely-designed speed control system, making it possible to screw/unscrew in a very short time. This electric car jack kit can save you a lot of time and energy.
[CHANGE TIRES EASILY]
Car jack hydraulic type can be supplied with two methods: cigar lighter and car battery. It has 11.5 feet power cord, long enough to go through the 4 tires without changing the power source. Tire pumping inflator is installed in the floor jack, equipped with tire pressure display, you are able to monitor the tire pressure easily. Even if you have never used an normal car jack and has never changed a tire yourself, you'll be amazed how easy and quick it is.
[4 IN 1 JACK]
The 4-in-1 electric car jack kit includes 5 Tons electric hydraulic car jack, air pump, LED light and warning light, which meets all your tire replacement needs in one time. The car jack and cable connector are waterproof and can be used normally in rainy days.
PRODUCT DESCRIPTION
TYAYT Hydraulic Jack let us say goodbye to the tedious manual disassembly, no need to ask someone for help to change tires.
PACKAGING INCLUDES
Electric Hydraulic Jack
Tire Inflator Pump
Portable Electric Wrench (Sold Separately)
LED Working Light
1 x Battery Clamp & Power Line
1 x Safety Hammer & Gloves
1 x Small Hexagonal Wrench
1 x Plastic Tool Box
TYAYT 4 IN 1 ELECTRIC JACK KIT
This electric car jack is driven by electro-hydraulic, and the powerful motor can lift the vehicle within 2 minutes. The impact wrench equipped in this kit can change the tires quickly. The tire pressure display on the electric jack can make it easier to monitor the tire pressure of the car tires.
NOTES
Never use the jack on sloped ground, truck or over 5 ton vehicles.
To ensure sufficient electricity, start the car engine before operation.
When the car jack is lifting, please do not touch the jack and stay away from the lifting area.
Please note the positive and negative terminals of battery, do not reverse the position of the battery clips
ELECTRIC HYDRAULIC JACK
Max. Loading Weight: 5 Ton (11000 lbs)
Lifting Range: 6 inch-17.7 inch
Power Cable: 11.5 FT
Control Method: Wire
Voltage: DC 12 V or Vehicle battery
Rated Current: 13 A , Fuse:15 A
Rated Power: 150 W
TIRE INFLATOR PUMP
Input Voltage:DC 12 V
Inflating Speed: 35 L/min
Working Current: 10 A
Pressure:10 BAR/150 PSI
Length of Air Hose: 0.6 m
Cylinder Diameter: 25 mm
PORTABLE ELECTRIC WRENCH
Wrench Sockets: 17 mm / 19 mm, 21 mm/ 23 mm
Control Method: Wire
Voltage: DC 12 V or Vehicle battery
Working Current: < 12 A
Max.Torque: 350 N.M/258 ft-lbs
HOW TO USE
1. Insert the power plug into the cigarette lighter. (or use battery clamp to connect car battery)
2. Choose a suitable location to place the jack under the car.
3. Choose'' JACK '' function switch, then Press “UP” button to lift the car. Press “ DOWN” button to lower. ( Press '' INFLATOR'' switch to inflate)

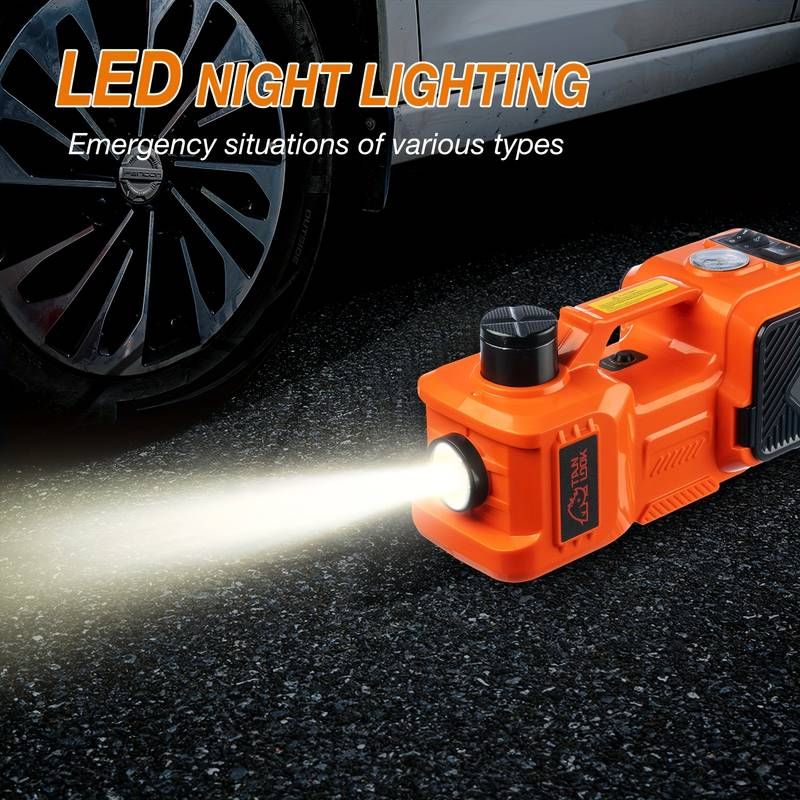

4. Press “LED LIGHT ” button for illumination.（The LED lights of the hydraulic jack can help you easily find the lifting area in the dark light )
